Static site and current work

Hello!

This post marks the first step on my new static site portfolio! I already had started making a minimal blog before using SvelteKit and mdsvex, but I was limited with what I could add that would be supported by SvelteKit’s static generation. This also made it so that I would have to leverage a lot more work just to write markdown posts, which was not my intention at the time. I decided to finally bite the bullet and set up a Jekyll theme.

Honestly I’d prefer to use Obsidian with some custom theming but Publish and Quartz don’t support themes in their entirety at the moment.

The theme I chose was Chirpy! It took me a bit of headscratching to set up the dev container for Code to work properly with Windows but it was not in vain. The theme looks clean and, with some tweaking, is suitable for the purposes of this portfolio. Having ported over my little animated icon from the previous version, I’m satisfied with what I have now.

The following features are ones I want to add in the future, but it’s my first time using Jekyll, having just set up Chirpy earlier today.

• Auto generated project cards and related posts. The pagination setup is a little confusing with how the theme sends the posts. It seems it’s linked closely to the index.html in some way and I’ll have to dig into the /_includes/ folder to find out more.
• A masonry-based image gallery to link media with metadata such as alt text that can be embedded from any page. I had trouble setting this up with svelte-img before.

Game development

I have been putting work on a passion project for a while now. During the school year, work on it was pretty irregular, but since my graduation I have been able to put in a lot more work. This game was originally created for a jam; however, I was not able to finish a working prototype in time. I felt a strong connection to the concept, so I decided to make it into a larger game.

Here are some gifs showcasing the current systems.

Grid based inventory concepts

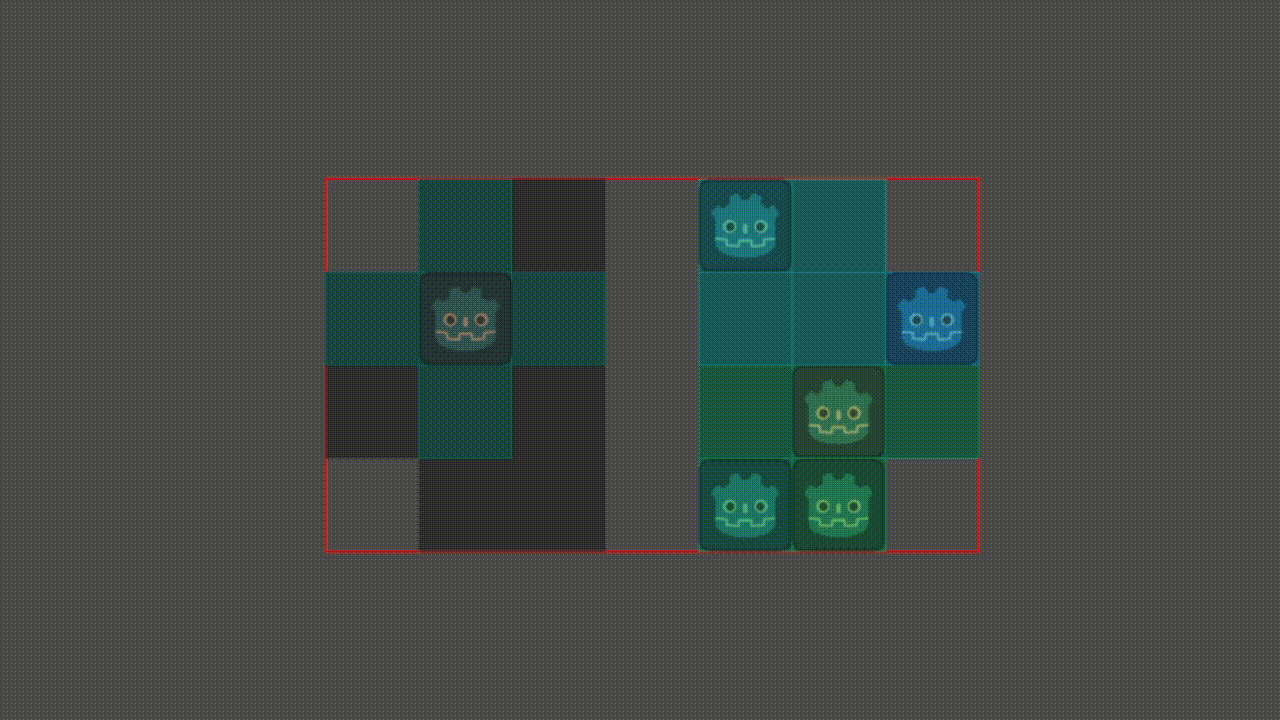

Here is a silly concept to show irregularly shaped item shapes with slots that can move.

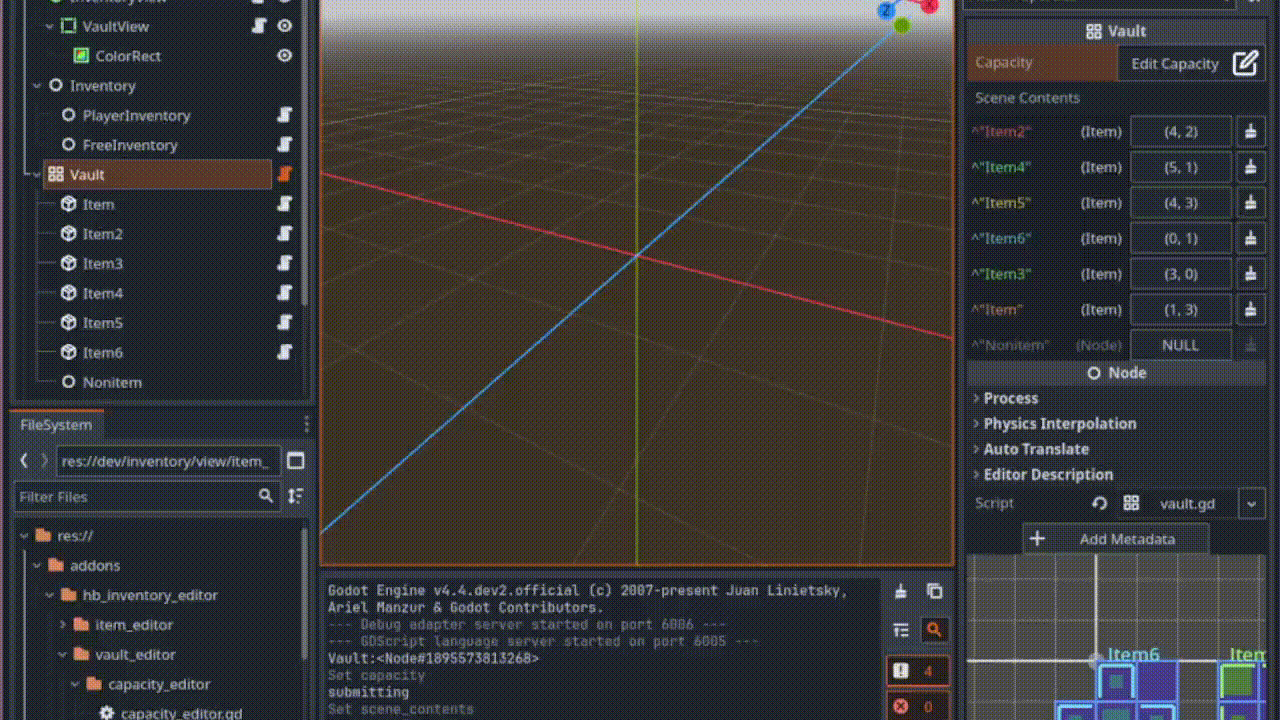

At some point, I implemented a custom editor and addon for containers and items. I’m still not entirely satisfied with the workflow and editing interface but I learned a lot from the process.

From my experience, Godot needs proper separation of editor and runtime behavior before GDScript & C# tool scripts and addons can be used in larger contexts. Unity supports preprocessing directives, which are less ambiguous, but there are other reasons as to why I am using Godot. I’d like to see an option where we can define editor behavior not through the script binding system but instead apply an ‘archetype’ script to the type itself so that we can separate code like _get_property_list() or _get_configuration_warnings() from runtime behavior.

Advanced Player Controller

The feature I’m currently putting a huge amount of work into is a physics-based player controller. This feature is such a crucial part of the gameplay that it warranted creating preliminary concepts in both Unity and Godot before finally settling on Godot (with the Jolt Physics Engine).

Safe to say, I’m really satisfied with the current work I’ve done and the seamlessness of the controller’s states. I’d like to write a more extensive post soon about the system, so I will leave you with just some screenshots and gifs as well.

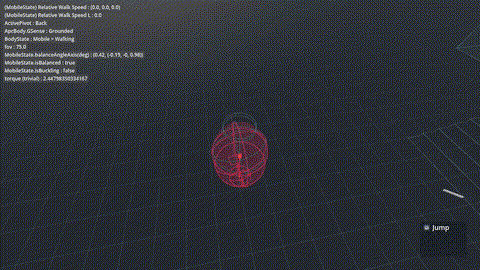

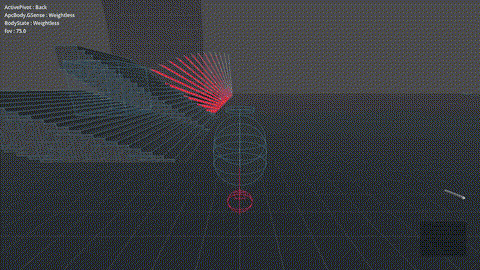

The player body supports any gravitational force. What is considered “ground” is determined by the direction of the G forces applied to the player. The player also can sense “passive” forces similar to the functions of the inner ear, aligning the camera when needed. The forces are determined with a process which I will call “reverse force integration.”

Both Unity and Godot do not give access to accurate contact impulses in addition to the frictional component of those impulses, which was necessary for the problems I needed to solve. However, Godot is open-source, which meant I could “reverse integrate” the physics system’s effect on the rigidbody’s acceleration. This is done by comparing and tracking all applied forces while also adding properties to specific ones such as marking a “running” force as a locomotion force. Jolt also helped with the natural stability of the physics system, which made things easier.

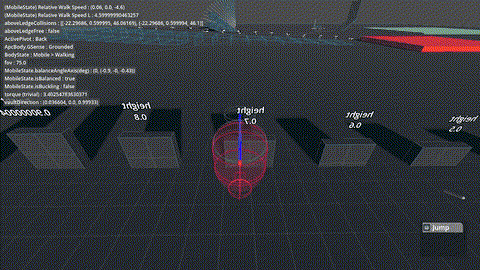

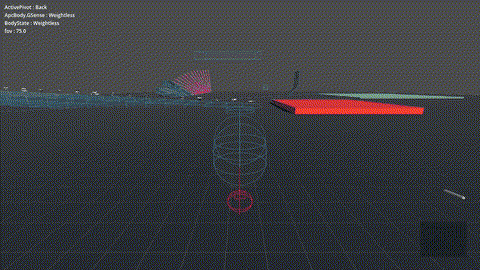

Here are a few clips testing the vaulting system. It’s largely based on shapecast validation. A damped harmonic force is applied to push the player up (similar to the force used to stand) in addition to a frictional force generated from relative velocity to the surface. The more force the player hits the vault with, the more momentum is applied to carry over to the vault speed.

A special case happens when the player cancels a vault right when the vault is completed. The previously built velocity allows them to “jump” with more force applied horizontally. Additionally, there is also some directional influence from the player’s input direction.

The part of the game I am currently taking a break from working on—in order to add to my portfolio—is the climbing system. Most of it is handled procedurally but not in the way you might think. I took a look at many attempts to recreate the system of Shadow of the Colossus in Unity (which used barycentric coordinates to traverse a climbable mesh) but settled on a simpler approach using mesh analysis. I’m designing the large creatures in my game to be more like how dolls are designed—with fixed rigid parts since they will be mechanical in nature rather than organic. (This also largely simplifies the implementation as I do not have to support deformation of collision meshes.)

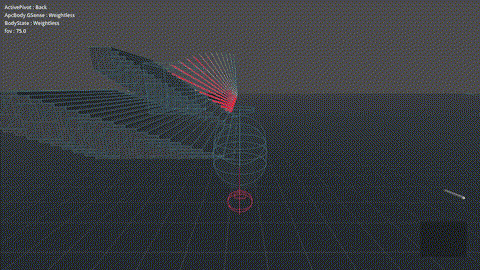

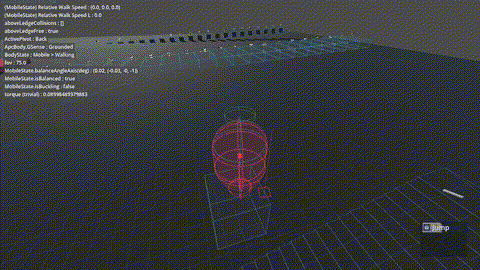

Here are a few clips of the current ledge grab integration in the climbing state. This is for a “flat” grab, meaning only forces from the surface’s normal and friction coefficient are applicable. The clutches are placed procedurally through analysis of a trimesh, which I will go into further detail on in a later post.

The system also works with any direction of gravity, like the ones before. A boon of working with robust systems like the force-based integration I mentioned earlier is that code created for previous applications can be reused for many things. I reused the first iteration of the “ledge walk” integration (which included damped harmonic forces and drive-based frictional forces on a non-centered position of the rigid body) in order to achieve proper mantling from a ledge grab state.
